Chilli Pro Case Review

By : Kevin 9/18/01

Nowadays the fad in the hardcore computer user world seems to be case modding. You aren't the coolest kid on the block unless your computer has a rainbow of LEDs, an LCD to monitor god knows what, and a window showing you stuff that a case is designed to hide. If you want your case to be the "1337est" of them all, you'll even splurge on an overpriced case just because it is made of aluminum. Lian-Li pretty much dominates this arena. Their cases are of the highest quality construction, look nice, and have great potential for modding. Recently Enermax, Coolermaster, and a few other companies have entered the arena of aluminum cases. One of these companies is Chilli. . .

What? You've never heard of Chilli? That's most likely because they went out of business a while ago. To make them more obscure, they were based in Taiwan with none of their products frequently reaching the U.S. shores. Chilli's last big entry in the case market was the Chilli Professional Case. This case is made of pure ¼" anodized aluminum. It is not a standard ATX type case like the Lian Li PC-XX series. This case is designed for those who want a VERY small, stylish, aluminum case. In other words, if you came to this article hoping a new watercooling case is here, you can leave now. This thing is SMALL! It is 7"(w)x15.5"(h)x10.5"(d)

I'm the kind of guy who usually likes to prioritize cooling when it comes to computers. I watercool, use peltiers, etc. However, I was building a computer for college. I wanted this one to have zero maintenance, be very quiet, and look flashy. Cooling and overclocking was not important.

 When I received the package, I noticed that Wahoo Computers did an excellent job of packaging. It was double boxed, had cardboard padding, and was placed in a plastic bag. The little metal slab on the top is the drive bay cover.

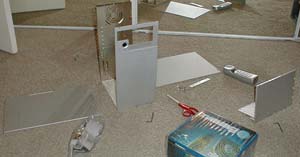

The picture above shows the sides and top removed. Also, notice the hex tools laying on the floor. As mentioned, these are provided. The phone is sold separately… Also, it is worth mentioning that, for whatever reason, the bottom panel of the case is made of plastic.

 In order to incorporate all of the PC components in such a small area, Chilli chose to actually mount the motherboard upside down, similar to how WTX cases are laid out (but this is NOT a WTX case). The power supply mounts directly over the CPU. I despise cases that use this setup. However, with the Chilli Pro Case being so damn small, there is no other place one could put it. Here's an example of sacrificing cooling to keep nice, small dimensions.

Being that this case is SO small, one needs to watch out how big their motherboard is. The Tyan Thunder K7 will obviously not fit in here. I was originally planning on using an Iwill DVD266-R motherboard (dual P3, DDR). It is 260mm wide. Mark from Wahoo Computers said he thought it would fit. If it did not fit, he was willing to refund the case. I decided to go with a single Athlon so I used the ECS K7S5A motherboard. This is an average size motherboard, and I had no trouble fitting it into the case. In order to install most components, I had to remove the panel that it installed on. I removed the motherboard panel and something immediately pissed me off again. There are only four mounting holes for the ATX motherboard. Additionally,

All is well now. I'm not sure why Chilli chose to not add more holes. Looking at the picture, notice just how thick ¼" aluminum really is. The walls on this case are of the highest quality. I then matched the back panel up with the connectors on the motherboard. The back panel does not have a removable metal plate for where the connections stick out of the back of the case. This was not a problem for me, and it will not be a problem for most. However, if your motherboard has some crazy features on it, you may be S.O.L. with this.

As I stuck the back panel on, I noticed that the location for the power supply was too close for comfort. Would my Swiftech MC462A with an oversized (thickness wise) 80mm fan be too tall? Take a look below.

As you can see, I had no room. The 80mm Delta was too high. If I had a standard, 25mm thick 80mm fan, I would have been fine. I decided to remove the CPU fan and continue building. I figured that I when I was done building, I would go grab a standard 80mm fan from the local computer shop. Mounting the hard drive was rather interesting. Instead of having an HD bracket sticking out of one of the panels as in a normal case, there is a metal bracket mounted the plastic bottom. It sticks up vertically and allows for two hard drives to be mounted.

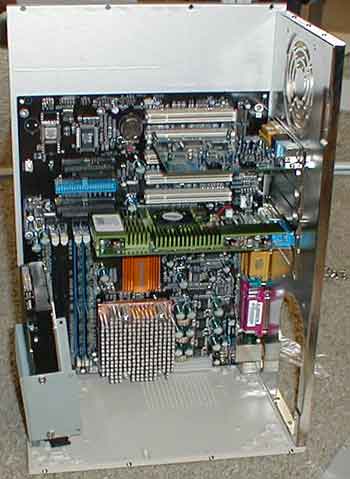

That's my PNY Geforce3 in the background (I chose the PNY because it was the cheapest DVI Geforce3).

As you can see in the picture, I have a Hercules Gamesurround Fortissimo II on the second highest PCI slot. It used to be in the top one. However, this PCI slot is lost with this case. So if you have 6 PCI cards in your system (which nobody does), this case isn't for you.

 The way the external drives are mounted is quite unusual. In order to do this, you remove the roof of the case. Another piece of thick aluminum is mounted perpendicular to the roof. The perpendicular piece of aluminum has mounting holes for drives. You only screw in one side of the drives. It looked like a pretty shady way to mount the drives. I didn't think that they would be sturdy.

However, I screwed the two drives in and I got this.

See that small 90 degree piece of metal on the bottom of the pic? That actually connects the larger drive to the floppy drive. It connects the side of the floppy drive to the bottom of the CD/DVD drive.

That's the final product. The top of the case is ready to mount to the rest of the case. Right about this time I was ready to mount the power supply. I quickly ran to the local computer shop and grabbed a new 80mm fan. I also removed the fan grill from the Enermax power supply to allow a bit more clearance over the fan. Now the power supply fit!

 Notice how the lower drive cover is held on with silicone glue. Um I guess that works… If you ever have a drive there, remove it, and want to cover the bay again, I suppose you are just supposed to glue the sucker back on. I connected the LED cables and screwed the front on. Then I put the top on and connected all of the IDE cables. Lastly, I used zip ties to clean things up a bit. Here's the innards.

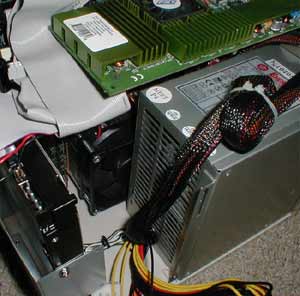

Damn it is cramped in there! I did my best to keep it clean though. Notice the huge bundle of power supply cables all tied up on the bottom. So I was ready to seal this mofo up.

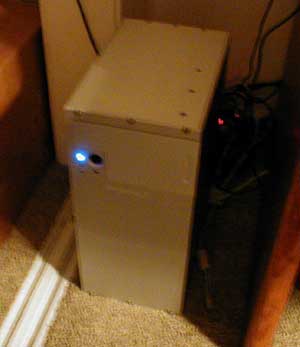

 Look at how awesome the finished product looks! Gotta love the blue LED. That drive cover slides right off. I don't use my drives much so I leave it on there. It makes the case look incredibly sleek.

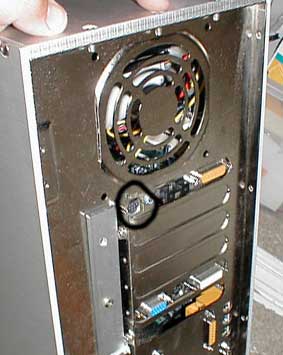

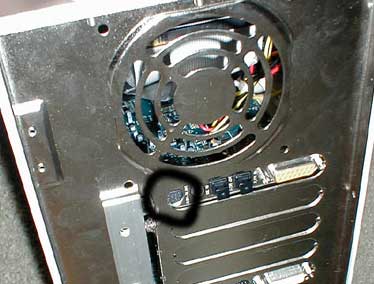

I was getting ready to plug my computer in, and I noticed another problem.

Pros:
INCREDIBLY thick metal for maximum sturdiness
Best looking case I've ever seen
Small construction makes it perfect for a LAN box

Cons:
Cooling is crap ( no real air flow )
Tough to put everything in there...
Sound card issue
Company is no longer in business ( Chilli is no longer in business, but Wahoo still has stock of these)

If you have any comments or Questions please email me at Kevin@ProCooling.com
