Antec Sonata Case Review
By: pHaestus           4/10/03

Introduction

As transistor count and heat of PC components increases, so too does the cooling needed to keep them within specified operational limits. For the majority of the PC world, this means increased system noise as a result of higher airflow requirements.   We who water cool have been computing in blissful silence for years (thanks to low speed fans on large radiators), but the rest of the PC world has not been so fortunate. The overclocking nut running 60 dBA Delta EHEs is an extreme example, but even mainstream systems are sometimes quite noisy. Silencing noisy PCs is an emerging theme of several enthusiast websites (http://www.silentpcreview.com is a popular one), targeted webstores (http://www.lownoise.de , www.quietpc.com ), and a popular topic in many online forums.   In fact, I overheard a conversation on the topic in the Toronto airport this week between what appeared to be two normal PC users (middle-aged men).  One of the guys had just bought a new AMD system locally, and couldn't stand the noise level (he was a former Mac user).  He was telling the other guy about going to the web and finding all these pages on using carpeted boxes and noise dampening materials and rubber grommets and special fans to make the system silent.  These guys didn't strike me as the blowhole or cold cathode types, but they were discussing case modifications.

Manufacturers haven't missed out on the buzz concerning quiet PCs either.  Over the last year, the number of "silent" and "quiet" fans and psus has skyrocketed. And thermally-controlled fan speed adjustment is becoming quite common as well. Motherboard manufacturers seem to finally be implementing the PWM fan control of the winbond IC (Speedfan users rejoice!), and products like the CrystalFontz 633 make temperature dependent fan speed setup simple.  For manual fan control, there have to be at least a dozen inexpensive 5.25" and 3.5" bay fan controllers with knobs and leds on the market now.  I remember soldering together a LM317-based unit from scratch not too long ago, but now that they are mass produced, I can purchase them for less money than it would cost to build one.

It was only a matter of time before a mainstream case manufacturer came out with an enclosure targeted at those seeking silent computers.  A few companies (Koolance and Swiftech) have tried to push water cooling in this way, but the initial cost and the potential for problems scares off many average quiet PC users.   Antec, Inc (www.antec-inc.com) is to my knowledge the first company to release a PC enclosure that is designed and marketed to those seeking silence.  Today, we will be taking a close look at that case, the Antec Sonata.

Specifications

The Sonata is a somewhat small midtower that is fairly comparable to the Antec SX635 in terms of its size. Here are the general specifications:

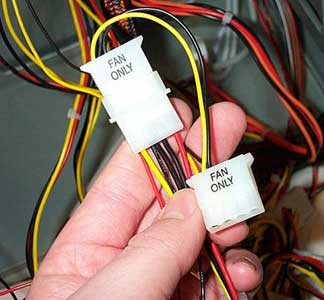

What is probably of more interest to you guys are the special noise reduction features.  All the HDDs are mounted on removable trays that have grommets to dampen noise from HDD vibration,. The case fans are held on the case by rubber grommets as well so they do not cause any vibrational noise.  And to further lower fan noise, the Truepower 380W PSU has special Molex connectors for case fans that lower their voltage to further quiet the fans. To compensate for any loss in cooling at reduced voltage, Antec opted for 120mm case fans for the Sonata.  This is certainly a welcome change..

Initial thoughts and appearance

When I first unpacked the Sonata, I noticed two things immediately: (i) it is made of steel and so it is noticeably heavier than the many aluminum cases littering my house and (ii) it is SHINY! Antec calls the finish piano black, and with good reason.  The side panels and top have an automotive-style black finish on them rather than the matte powder coating that Antec used in the past. I thought the effect was very nice and gave the enclosure a classy look.

Sonata next to another Antec clone.  Note the shiny paint!
One thing about the panels that will turn some of you off is the fact that the top, bottom, and one side of the case are all one piece and riveted into place. Now this isn't a huge deal because the drive bays all have drive rails so there is no pressing need to get to those sides of the case.  However, I personally cut a hole in motherboard trays under the CPU to gain access to the 4 socket holes. This is not really feasible with the Sonata, so if you are a "backwards waterblock spring mounting" kinda guy then be aware.

I have owned two Antec cases previously, and the Sonata shares many of the design features with the older SX series of cases.  The excellent door handle mechanism is still present in the Sonata, as is the locking front door.  However, some aspects of the case are completely new. For example, the front bezel was substantially redesigned on the Sonata to give it a much cleaner and distinctive look.

The end result of the new paint job and bezel was an extremely clean and attractive case.  One thing that may turn some readers off is the "Antec" logo punched into the side panel, The holes are designed to aid in cooling, but the design is a little on the gaudy side for my tastes.

Another thing that one notices about the front of the case is the shiny silver piece.  That piece is actually a door for the multimedia ports. On either side of this door are blue LEDs. They are not the high intensity "wake the neighbors" versions and I don't find them too obtrusive. Antec wired the LEDs to a normal 4 pin molex (they are 5V), so if you don't care for them then you can just unplug them at any time.

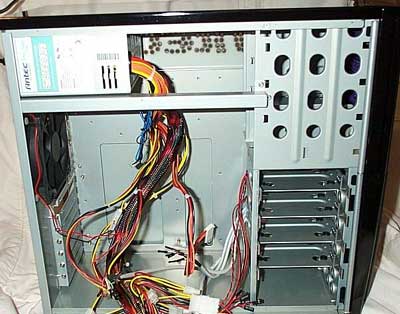

Internal Layout

The standout feature of the Sonata when it is opened is the sideways mounted HDD area. I honestly don't know why no one has done this before, as it seems a much more efficient use of space.  A side effect of this layout is that the intake fan (which is optional and not part of the package) is placed inside the case rather than mounted directly on the front. This will also help to lower noise because the fan will be muffled by the Sonata's thick steel panels.

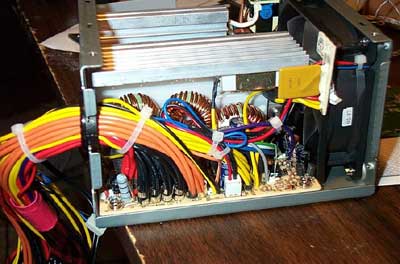

The PSU will automatically adjust the fan voltage, presumably as PSU load increases, to keep noise levels down when the system is not under stress.  I couldn't find any details of how this is done, so I cracked open the Antec PSU to take a closer look.

More of the innards of this lil baddie this way
